Description
- Resolution: 0.01mm/0.0005"
- Buttons: on/off, zero, mm/inch, ABS/INC, data hold, TOL, set
- ABS/NIC is for absolute and incremental measurement
- TOL is for tolerance measurement
- Carbide tipped scriber
- Made of stainless steel (except the base)
- LR44 battery, data output

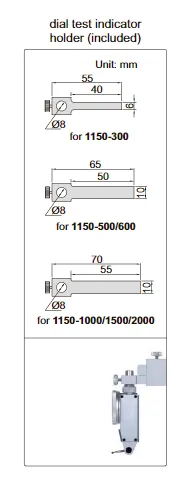

- Supplied with the dial test indicator holder
- Supplied with dust cover (except 1150-1500/2000)
- Optional accessory: data output cable
(code 7302-SPC7, keyboard format)

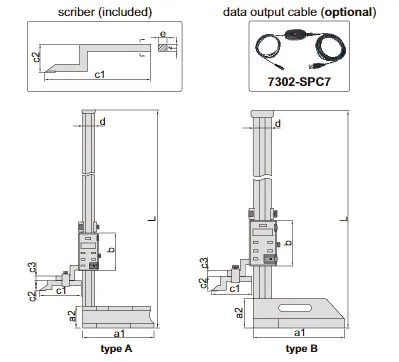

For the following table the unit is mm unless otherwise specified.
| Code | Range | Type | Accuracy | L | a1 | a2 | b | c1 | c2 | c3 | d | e | f |
| 1150-300 | 0-300mm/0-12" | A | ±0.05mm | 470 | 135 | 45 | 80 | 76 | 25 | 10 | 23 | 6 | 8 |

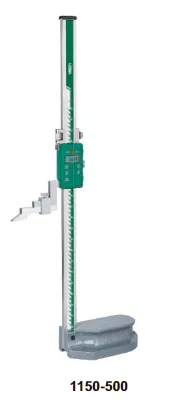

| 1150-500 | 0-500mm/0-20" | A | ±0.06mm | 720 | 180 | 55 | 95 | 103 | 25 | 12 | 30 | 10 | 12 |
| 1150-600 | 0-600mm/0-24" | A | ±0.06mm | 820 | 180 | 55 | 95 | 103 | 25 | 12 | 30 | 10 | 12 |

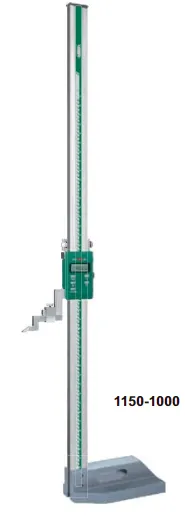

| 1150-1000 | 0-1000mm/0-60" | B | ±0.08mm | 1275 | 250 | 80 | 125 | 110 | 39 | 15 | 50 | 10 | 15 |
| 1150-1500 | 0-1500mm/0-60" | B | ±0.12mm | 1790 | 280 | 80 | 125 | 110 | 39 | 15 | 50 | 10 | 15 |
| 1150-2000 | 0-2000mm/0-80" | B | ±0.16mm | 2290 | 280 | 80 | 125 | 110 | 39 | 15 | 50 | 10 | 15 |
