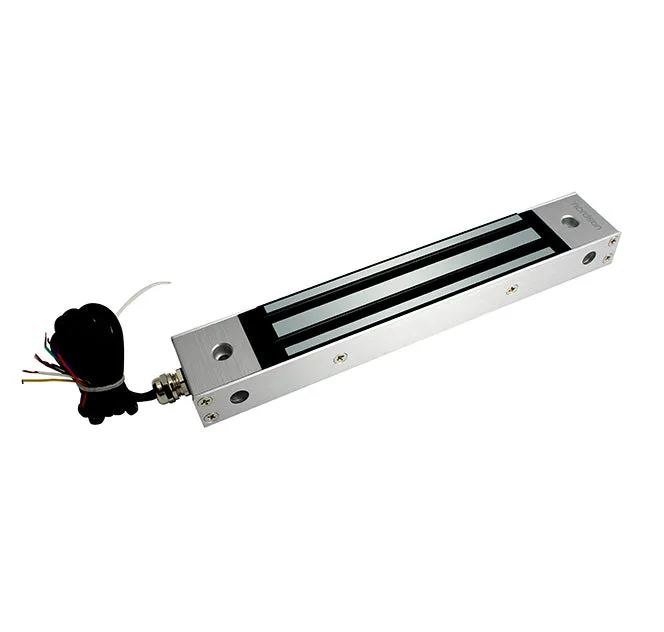

Nordson NE-280W Electromagnetic Lock with Waterproof 280kg (600Lbs)
Voltage:DC12V or DC24V
Waterproof IP65
Holding Force: 280kg (600Lbs)
Lock Size: 250L*48W*25H(mm)
Armature Plate:180L*38W*11H(mm)
Current Draw: 12V/500mA 24V/250mA
No residual magnetism, no mechanical damage 90 degrees open for all kinds of doors with frame
With Timer & Buzzer Customization Available
Weight: 2.4kg
Waterproof IP65
Holding Force: 280kg (600Lbs)
Lock Size: 250L*48W*25H(mm)
Armature Plate:180L*38W*11H(mm)
Current Draw: 12V/500mA 24V/250mA
No residual magnetism, no mechanical damage 90 degrees open for all kinds of doors with frame
With Timer & Buzzer Customization Available
Weight: 2.4kg
SPECIFICATION
| Holding Force | 280kg(600Lbs) |
| Waterproof grade | IP65 |
| LED | NO |
| Lock Status Sensors | Dry contact NO,NC,COM |
| Rated Operating Voltage | 12/24VDC |
| Current consumption | 12V/500mA 24V/250mA |
| Optional Functions | Relock Delay Timer,Buzzer |
| Surface finish for magnet | Zinc plated |
| Surface finish for armature plate | Zinc plated |
| Ambient temperature in °C | -10～ 55℃(14-131F) |
| Suitable for | Wooden & Aluminum & Glass & Fireproof &Metal |
| Magnets Dimensions(L x W x D) | 250Lx48Wx25H(mm) |
| Armature Plate Dimensions(L x W x D) | 180L*38W*11H(mm) |
| Weight in kg | 2.0kg |
NW-280W single door 600Lbs Waterproof Electromagnetic Lock,specially used to out glass door,wooden door,metal door,fire doors,and all kinds of door.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer.
